Caster

3NYH42A

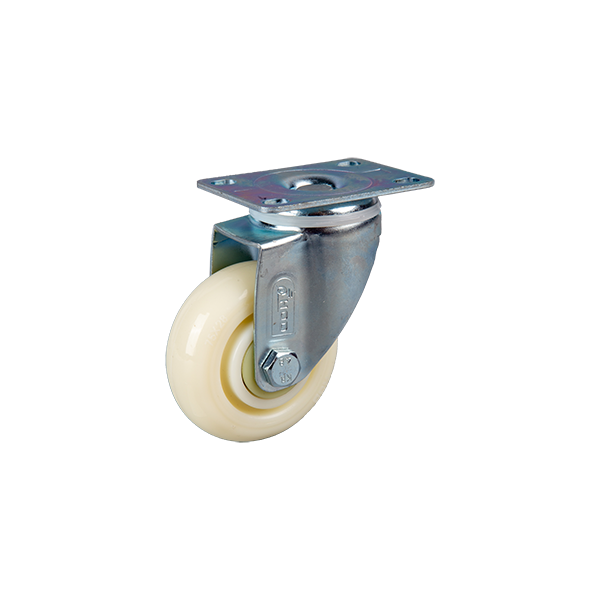

Light Duty Caster 42
  • 2~3 inch
  • Load Capacity: 50~80 kg
  • RoHS Compliant
  • Suitable for electronic equipment trolleys, automation equipment, precision testing instruments and equipment, food machinery and equipment
Specification
Dia.*Width 75(3”)*28mm
Wheel/Housing Material White Nylon (Zinc Plated SS41)
Load Capacity 80kg
Size of Plate 80*58mm
Bolt Hold Spacing 60.5*40mm
Mounting Bolt Dia. 8.2mm
Height 103mm
Rotation Radius 69.5mm
Bearing Type 6001ZZ*2
Light Duty Caster 42
