Caster

2NYH42A

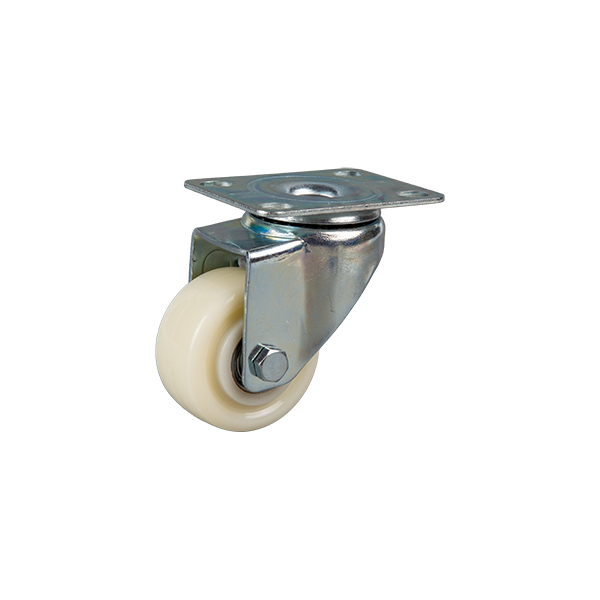

Light Duty Caster 42
  • 2~3 inch
  • Load Capacity: 50~80 kg
  • RoHS Compliant
  • Suitable for electronic equipment trolleys, automation equipment, precision testing instruments and equipment, food machinery and equipment.
Specification
Dia.*Width 50(2”)*26mm
Wheel/Housing Material White Nylon (Zinc Plated SS41)
Load Capacity 60kg
Size of Plate 71*52mm
Bolt Hold Spacing 52.5*35mm
Mounting Bolt Dia. 8.2mm
Height 75mm
Rotation Radius 53mm
Bearing Type 608Z*2
Light Duty Caster 42
