Leveling Feet, Adjuster(Adjustable feet)
FS704075

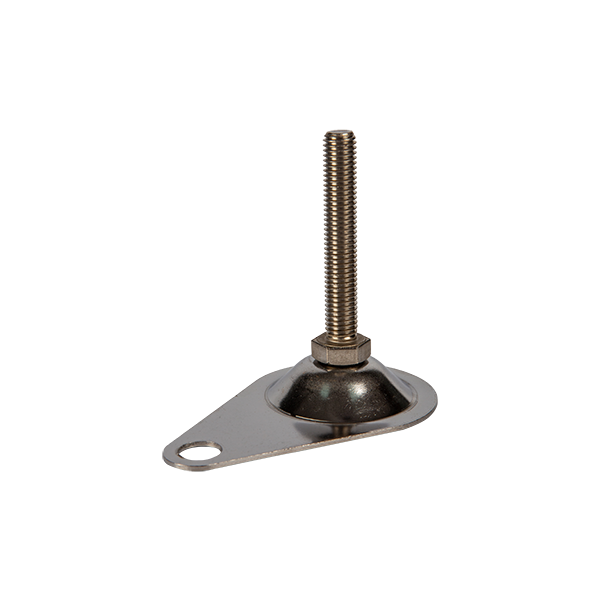

Fixed type Leveling Feet(Adjustable feet)
- The housing of F series is zinc plated; and of FS series is stainless steel.
- FS Series could be used in humid environment
- RoHS Compliant
- Suitable for conveyor machine and dust barrier system.
Specification
| Base Material | Stainless Steel(SUS304) |
| Bolt Material | Stainless Steel(SUS304) |
| Bolt Length (L2) | 75mm |
| Base Dia. (D1) | 115mm |
| Base Height (L1) | 23mm |
| Size of Screw (D2) | 1/2”--12WTmm |
| Height (H) | 98mm |
| Load Capacity | 200kg |
| Eccentricity | 69mm |
