Leveling Feet, Adjuster(Adjustable feet)

F6016180

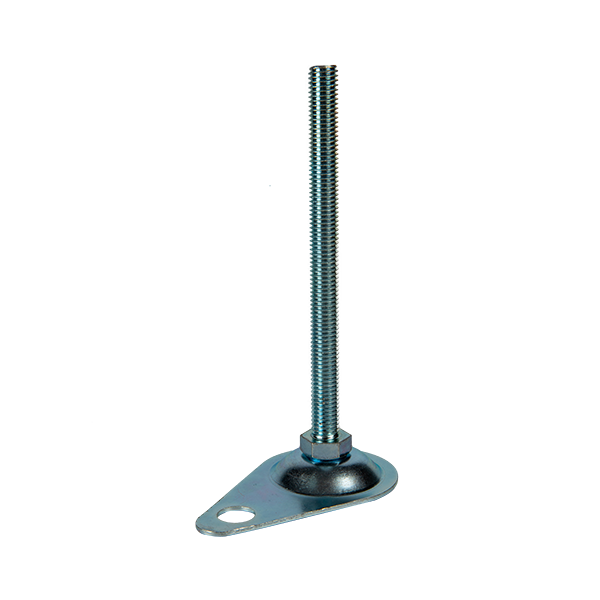

Fixed type Leveling Feet(Adjustable feet)
  • The housing of F series is zinc plated; and of FS series is stainless steel.
  • FS Series could be used in humid environment
  • RoHS Compliant
  • Suitable for conveyor machine and dust barrier system.
Specification
Base Material Zinc Plated(SS41)
Bolt Material Zinc Plated(SS41)
Bolt Length (L2) 180mm
Base Dia. (D1) 100mm
Base Height (L1) 24mm
Size of Screw (D2) M16*P2.0mm
Height (H) 204mm
Load Capacity 300kg
Eccentricity 52mm
Fixed type Leveling Feet(Adjustable feet)
