AGV Casters / AMR Casters

GAMT-75-ASF-HUD

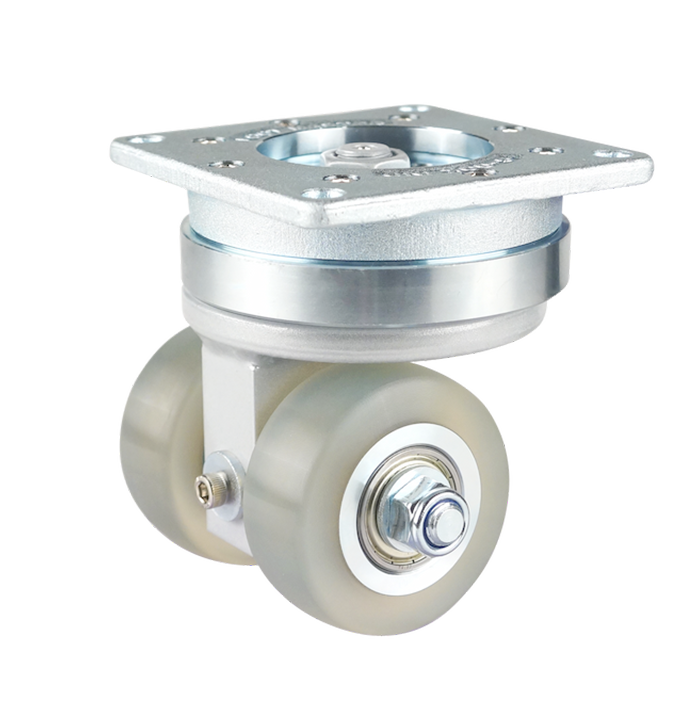

FOOT MASTER®AGV Caster GAMT
  • The GAMT series combines the existing double-rotating caster GAAD with the tilting structure GATD. By combining the two most popular casters among Jideok Industry’s AGV AMR caster series, it is a multi-purpose caster that can most quickly respond to the various needs of customers.
Specification
Diameter 75mm
Material PU(Shore A95) Carbon steel/zinc plated
Load Capacity 250kg
Width 30*2mm
Height 130mm
Eccentricity 10~30mm
Plate Size 112*112mm
Plate Hole Distance 92*92mm
Plate Hole Size 9mm
FOOT MASTER®AGV Caster GAMT
Related Products
FOOT MASTER®AGV Caster GAMT
READ MORE
GAMT-100-ASF-HUD
FOOT MASTER®AGV Caster GAMT
Diameter：100mm
Material：PU(Shore A95)Carbon steel/zinc plated
Load Capacity：310kg
FOOT MASTER®AGV Caster GAMT
READ MORE
GAMT-125-ASF-HUD
FOOT MASTER®AGV Caster GAMT
Diameter：125mm
Material：PU(Shore A95) Carbon steel/zinc plated
Load Capacity：440kg
FOOT MASTER®AGV Caster GAMT
READ MORE
GAMT-150-ASF-HUD
FOOT MASTER®AGV Caster GAMT
Diameter：150mm
Material：PU(Shore A95) Carbon steel/zinc plated
Load Capacity：630kg
