Caster

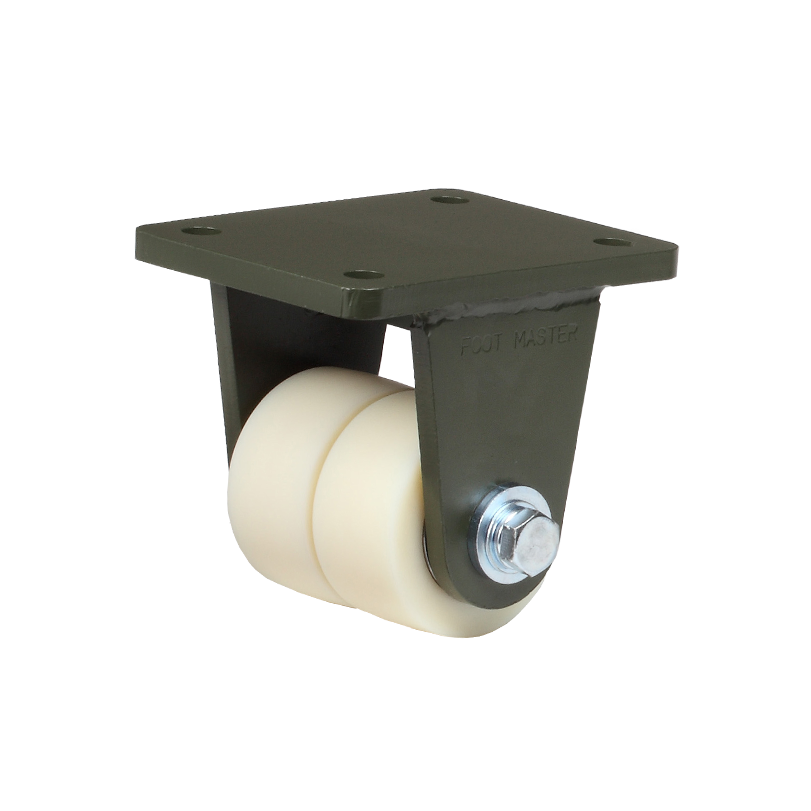

GXTT-75-ARF-MCD

FOOT MASTER® Extra-Heavy Duty Caster GXTT
  • Cast iron bracket with PU or MC Nylon tread
  • 3~5 inch
  • Capacity: 800~2300 kg
  • Could be used in aerospace industry, AGV robot, and car plant assembly.
Specification
Dia.*Width 75mm
Wheel/Housing Material MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity 1700kg
Size of Plate [SF]140*110 [RF]140*117mm
Bolt Hold Spacing 105*80mm
Mounting Bolt Dia. 13mm
Height 125mm
Rotation Radius 82.5mm
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Related Products
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-75-ASF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：75mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-75-BSF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：75mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-75-ARF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：75mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-100-ASF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：100mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：1100kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-100-BSF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：100mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：1100kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-100-ARF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：100mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：1100kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-125-ASF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：125mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：1400kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-125-BSF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：125mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：1400kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-125-ARF-HUD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：125mm
Wheel/Housing Material：PU(Shore D70) (Powder Coating/zinc plated)
Load Capacity：1400kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-75-ASF-MCD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：75mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：1700kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-75-BSF-MCD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：75mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：1700kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-100-ASF-MCD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：100mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：2000kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-100-BSF-MCD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：100mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：2000kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-100-ARF-MCD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：100mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：2000kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-125-ASF-MCD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：125mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：2300kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-125-BSF-MCD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：125mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：2300kg
FOOT MASTER® Extra-Heavy Duty Caster GXTT
READ MORE
GXTT-125-ARF-MCD
FOOT MASTER® Extra-Heavy Duty Caster GXTT
Dia.*Width：125mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：2300kg
