FOOT MASTER®
GXT-125-ARF-MCD

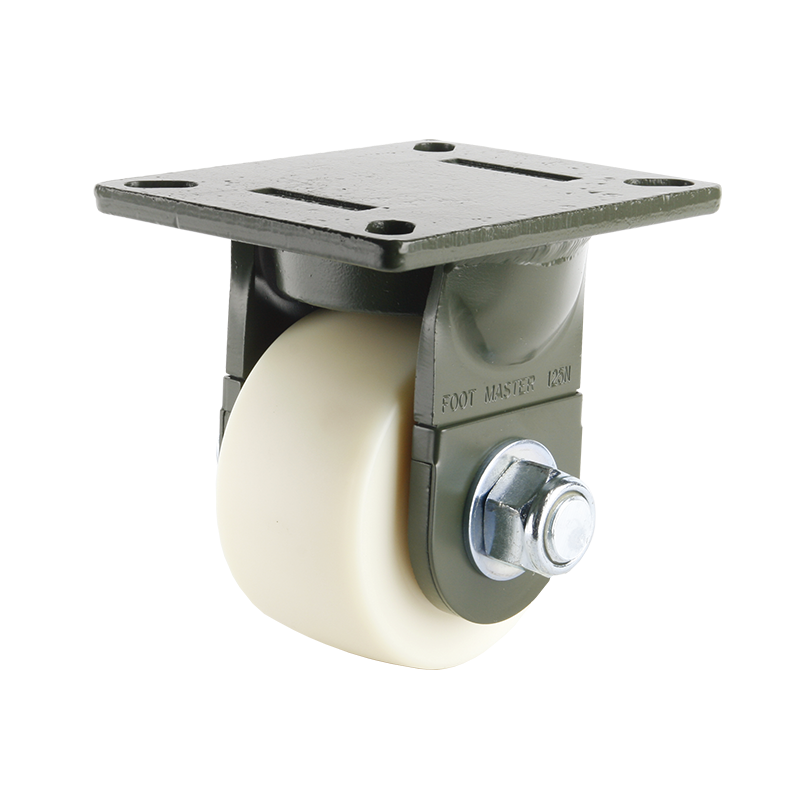

FOOT MASTER® Extra-Heavy Duty Caster GXT
- Cast iron bracket with PU or MC Nylon tread
- 3~10 inch
- Capacity: 500~2700 kg
- Could be used in aerospace industry, AGV robot, and car plant assembly.
Specification
| Dia. | 125mm |
| Wheel Material | MC Nylon(Shore D80) |
| Load Capacity | 1500kg |
| Surface Treatment | Powder Coating/zinc plated |
| Width | 70mm |
| Height | 170mm |
| Eccentricity | 77.5mm |
| Size of Plate | 175*140mm |
| Plate Hole Centers | 140*105mm |
| Plate Hole | 14mm |
| Temperature | -10~+90℃ |
