Caster

GF-100-BRF-MCD-SIL

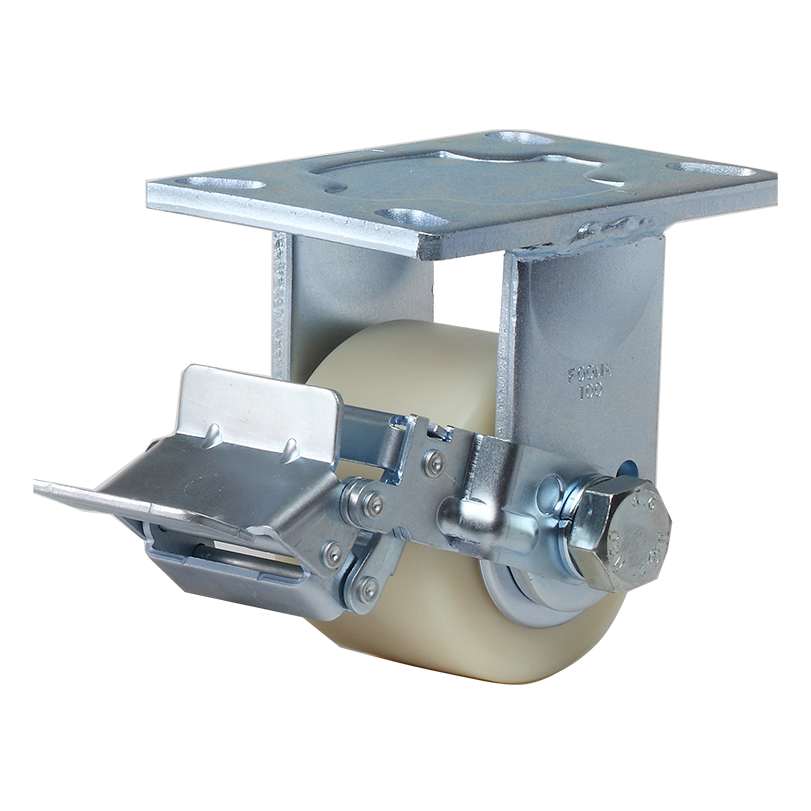

FOOT MASTER® Extra-Heavy Duty Caster GF
  • Cast iron bracket with PU or MC Nylon tread
  • 4~10 inch
  • Load Capacity: 650~1300 kg
  • Suitable for aerospace industry, AGV handling, automobile production lines, etc.
Specification
Dia.*Width 100mm
Wheel/Housing Material MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity 800kg
Size of Plate 159*114mm
Bolt Hold Spacing 130*74mm
Mounting Bolt Dia. 13mm
Height 145mm
Rotation Radius 87mm
FOOT MASTER® Extra-Heavy Duty Caster GF
Related Products
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-100-ASF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：100mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：650kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-100-BSF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：100mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：650kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-100-ARF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：100mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：650kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-100-BRF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：100mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：650kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-125-ASF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：125mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：750kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-125-BSF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：125mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：750kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-125-ARF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：125mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：750kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-125-BRF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：125mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：750kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-150-ASF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：150mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-150-BSF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：150mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-150-ARF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：150mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-150-BRF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：150mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-200-ASF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：200mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：850kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-200-BSF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：200mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：850kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-200-ARF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：200mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：850kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-200-BRF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：200mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：850kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-250-ASF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：250mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：1200kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-250-BSF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：250mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：1200kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-250-ARF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：250mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：1200kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-250-BRF-MUD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：250mm
Wheel/Housing Material：PU(Shore A95) (Carbon steel/silver powder coating)
Load Capacity：1200kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-100-ASF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：100mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-100-BSF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：100mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-100-ARF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：100mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：800kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-125-ASF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：125mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：900kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-125-BSF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：125mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：900kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-125-ARF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：125mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：900kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-125-BRF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：125mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：900kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-150-ASF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：150mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1000kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-150-BSF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：150mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1000kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-150-ARF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：150mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1000kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-150-BRF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：150mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1000kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-200-ASF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：200mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1100kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-200-BSF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：200mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1100kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-200-ARF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：200mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1100kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-200-BRF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：200mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1100kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-250-ASF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：250mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1300kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-250-BSF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：250mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1300kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-250-ARF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：250mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1300kg
FOOT MASTER® Extra-Heavy Duty Caster GF
READ MORE
GF-250-BRF-MCD-SIL
FOOT MASTER® Extra-Heavy Duty Caster GF
Dia.*Width：250mm
Wheel/Housing Material：MC Nylon(Shore D80) (Carbon steel/silver powder coating)
Load Capacity：1300kg
