Leveling Caster

SGDN-60-F-NYN

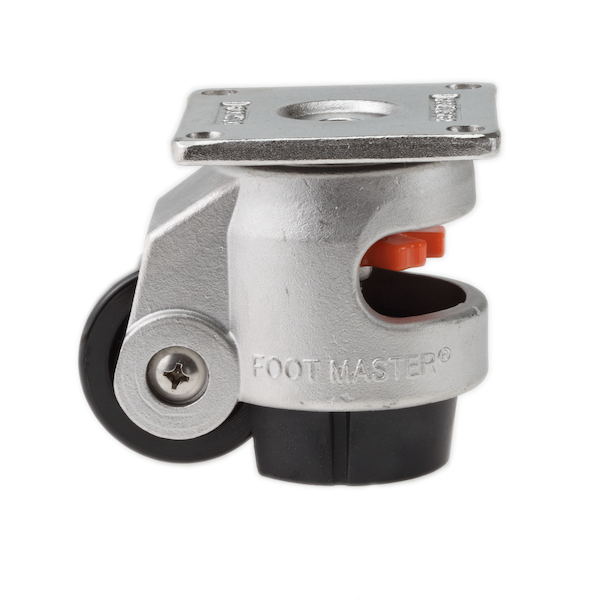

FOOT MASTER®Leveling Caster SGDN
  • A combination of a leveling feet and caster.
  • Save operation time and improve work efficiency
  • Rubber leveling foot pad may absorb vibration.
  • Chemical resistance and low moisture absorption
Specification
Dia.*Width 50*25mm
Wheel/Housing Material Nylon66 (Stainless Steel(SUS304))
Load Capacity 280kg
Size of Plate 73*73mm
Bolt Hold Spacing 58*58mm
Mounting Bolt Dia. 7mm
Height 82+10mm
Rotation Radius 63mm
FOOT MASTER®Leveling Caster SGDN
