FOOT MASTER®
GAGD-75-ASF-HUD

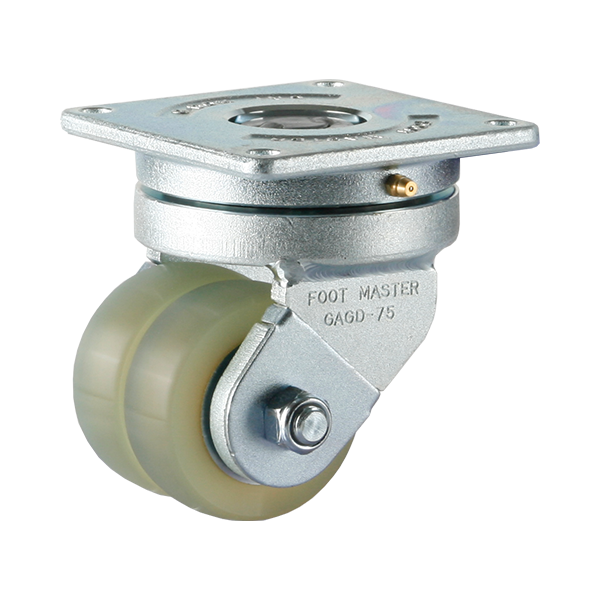

FOOT MASTER®AGV Caster GAGD
- AGVs with high loads are difficult to change directions. When the AGV turns, it will turn around the wheels.
- Therefore, when turning, the AGV casters will shake due to the size of the eccentricity. The higher the load, the more obvious the shaking phenomenon, so the AGV will deviate from the normal driving path. The GAGD series can withstand high loads. In order to prevent the AGV from suddenly stopping when turning, an excellent solution with a smaller eccentricity than ordinary casters is provided.
Specification
| Dia. | 75mm |
| Wheel Material | PU(Shore A95) |
| Load Capacity | 250kg |
| Surface Treatment | Carbon steel/zinc plated |
| Width | 30*2mm |
| Height | 123mm |
| Eccentricity | 30mm |
| Size of Plate | 112*112mm |
| Plate Hole Centers | 92*92mm |
| Plate Hole | 9mm |
| Temperature | -10~+90℃ |
