AGV Casters / AMR Casters

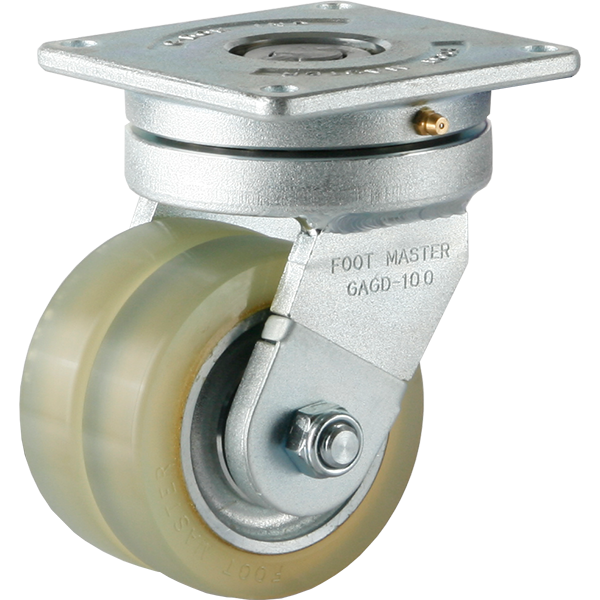

GAGD-100-ASF-HUD
Heavy Duty AGV/AMR Caster (Offset Optimization)
- AGVs with high loads are difficult to change directions. When the AGV turns, it will turn around the wheels.
- Therefore, when turning, the AGV casters will shake due to the size of the eccentricity. The higher the load, the more obvious the shaking phenomenon, so the AGV will deviate from the normal driving path. The GAGD series can withstand high loads. In order to prevent the AGV from suddenly stopping when turning, an excellent solution with a smaller eccentricity than ordinary casters is provided.
Specification
| Diameter | 100mm |
| Material | PU(Shore A95) |
| Load Capacity | 310kg |
| Width | 30*2mm |
| Height | 150mm |
| Eccentricity | 30mm |
| Plate Size | 112*112mm |
| Plate Hole Distance | 92*92mm |
| Plate Hole Size | 9mm |
