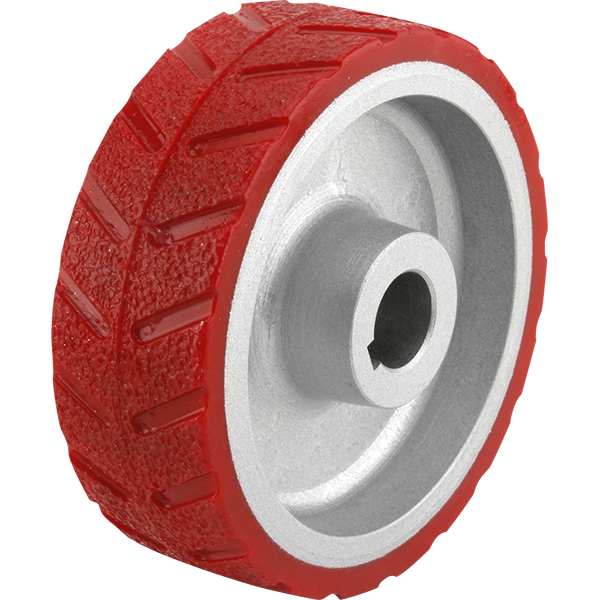

AGV/AMR/OHT Drive Wheel
2WPUL1550X/P5/93A
AGV/AMR Drive Wheel(Keyway)
- Application:
- 1. Port Logistic
- 2. Air-cargo Logistic
- 3. Mining Logistic
- 4. High-speed Running Drive Wheel
- 5. AGV System
- 6. Electric Towing Equipments
- 7. Vehicle Industrial Assembly Line
- 8. Electric Pallet Truck
- 9. V-groove Wheel for Warehouse Logistic
- 10. Light Duty AGV Drive Wheel
- 11. Cleaning Equipments
Specification
Diameter | 150mm |
Width | 50mm |
Load Capacity | 400kg |
DN# | 4 |
Material | Polyurethane93 ShoreA |
Pattern | Embossment+Herringbone |
Core Material/Color | Cast iron/Silver coated |
Keyway Shaft Size | 25mm |
Keyway Width | 8mm |
Keyway Length | 28.3mm |
